Hydraulic Cylinder Manufacturing Guide
Understand how hydraulic cylinders are designed, machined, honed, sealed, assembled and tested — and how materials, tolerances and build quality influence reliability in service.
A practical hydraulic cylinder engineering reference for engineers, maintenance teams, buyers and technical decision-makers.
How are hydraulic cylinders manufactured?
Hydraulic cylinders are manufactured by machining the barrel, piston rod, piston, gland and end components to controlled dimensions, preparing the internal barrel bore, installing seals and bearing elements, assembling the unit and carrying out functional and pressure checks before the cylinder enters service.

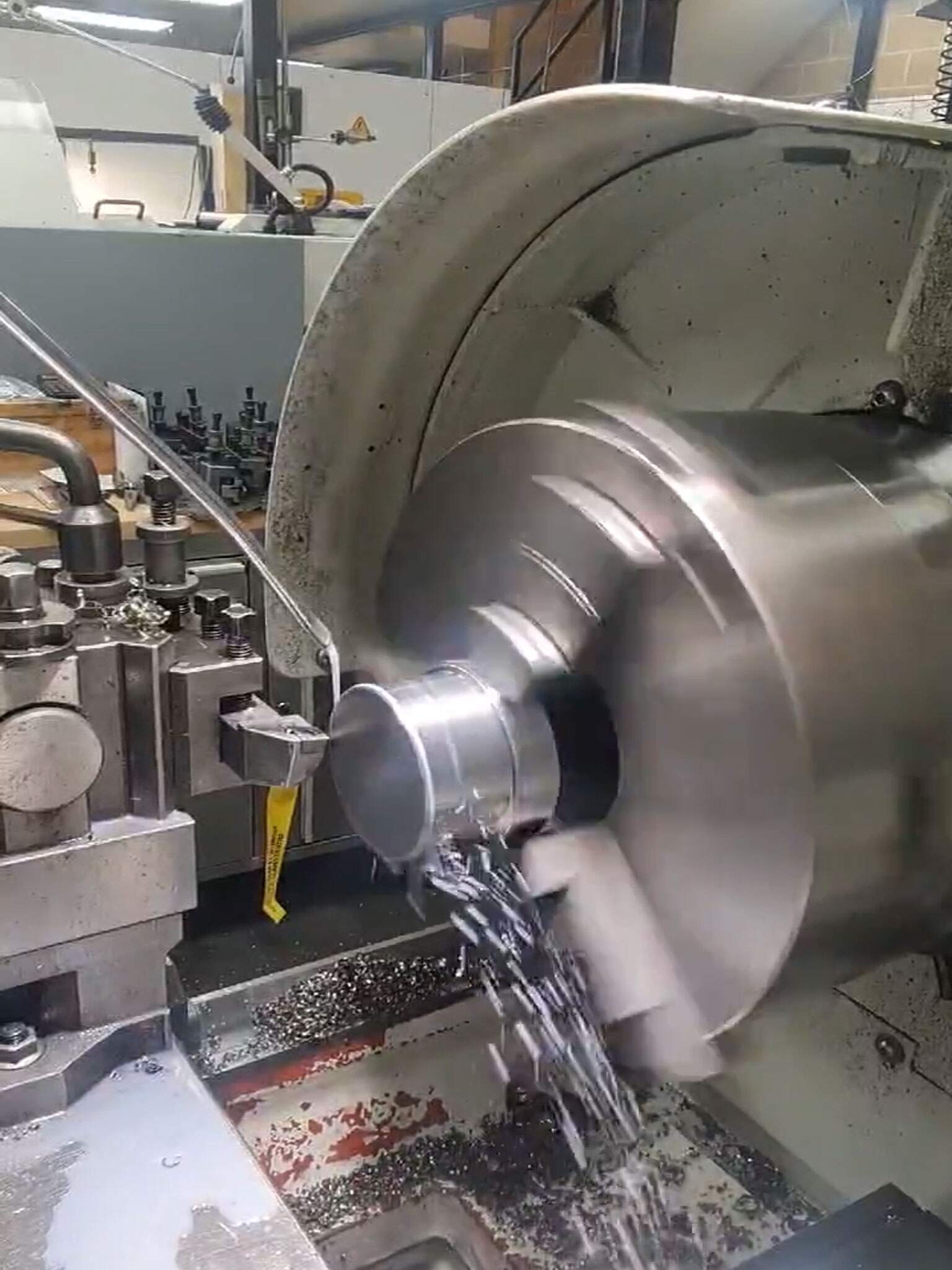

Hydraulic cylinder manufacturing from component to completed assembly
Use the guide sections below to move directly to the part of the manufacturing process or engineering specification you need.

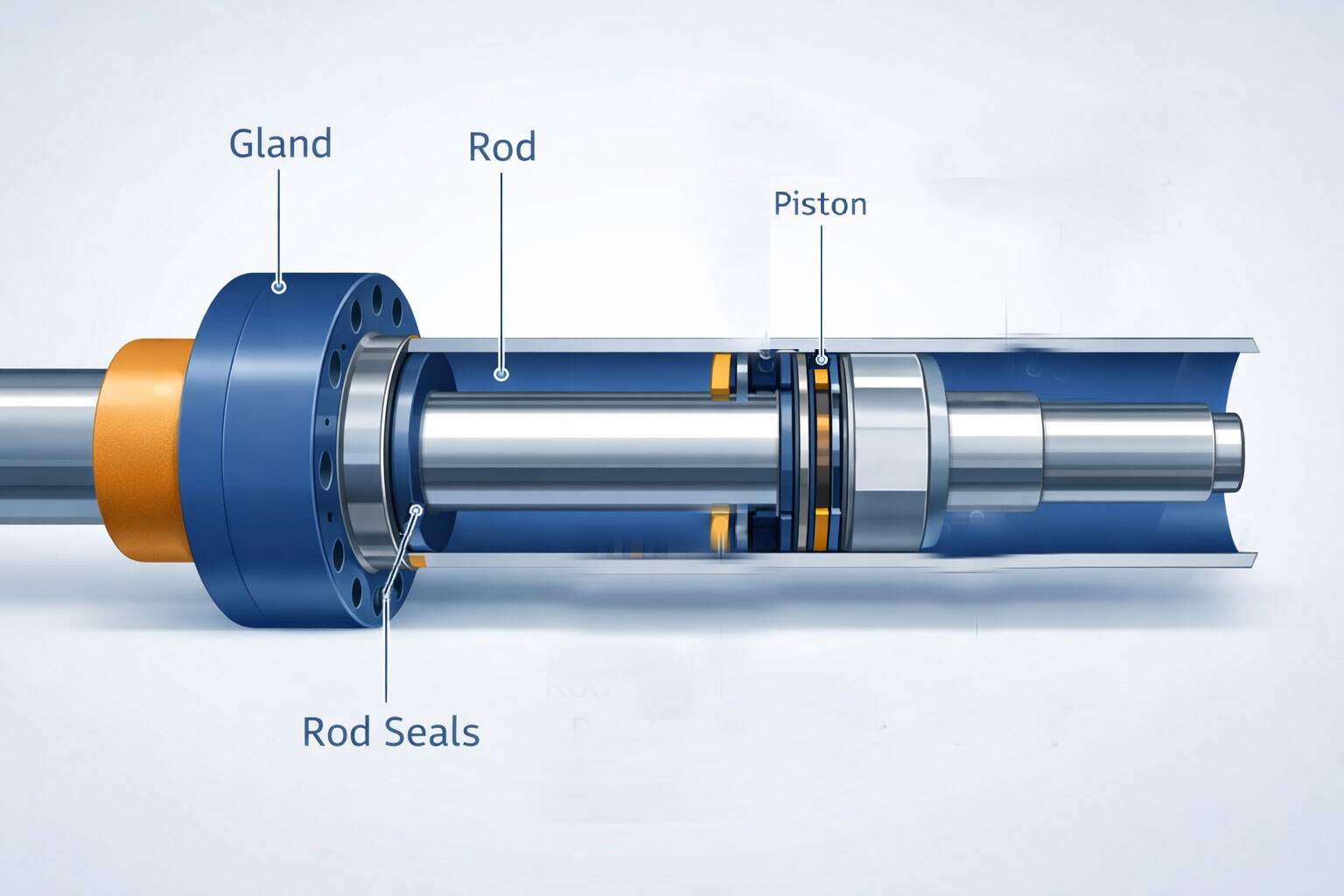

The main parts of a hydraulic cylinder
Most hydraulic cylinders use the same fundamental component groups. Understanding each part makes it easier to understand both the manufacturing process and the causes of common cylinder failures.
Cylinder Barrel
The barrel contains hydraulic pressure and provides the running surface for the piston sealing and guidance system. Bore condition, straightness and surface finish are critical.
Explore cylinder parts →Piston Rod
The rod transfers cylinder force to the machine or structure. Surface condition, straightness, hardness and corrosion resistance directly influence rod seal life.
Hydraulic cylinder rods explained →Piston
The piston separates the pressure chambers and carries the piston seal and guidance system. Correct clearances help control bypass and prevent metal-to-metal contact.
Explore piston function →Gland
The gland guides the piston rod and houses the rod seal, wiper and associated bearing elements.
Hydraulic cylinder glands explained →Sealing System
Rod seals, piston seals, wipers and wear rings control leakage, exclude contamination and maintain guidance during movement.
Explore sealing components →End Closures
End caps close the pressure vessel and may also carry ports, mounting features and structural interfaces.
Hydraulic cylinder end caps explained →How a hydraulic cylinder is manufactured
Exact methods vary with cylinder type and specification, but the fundamental manufacturing sequence remains consistent.
Confirm the Specification
Establish bore, rod diameter, stroke, mounting arrangement, porting, working conditions and application requirements.

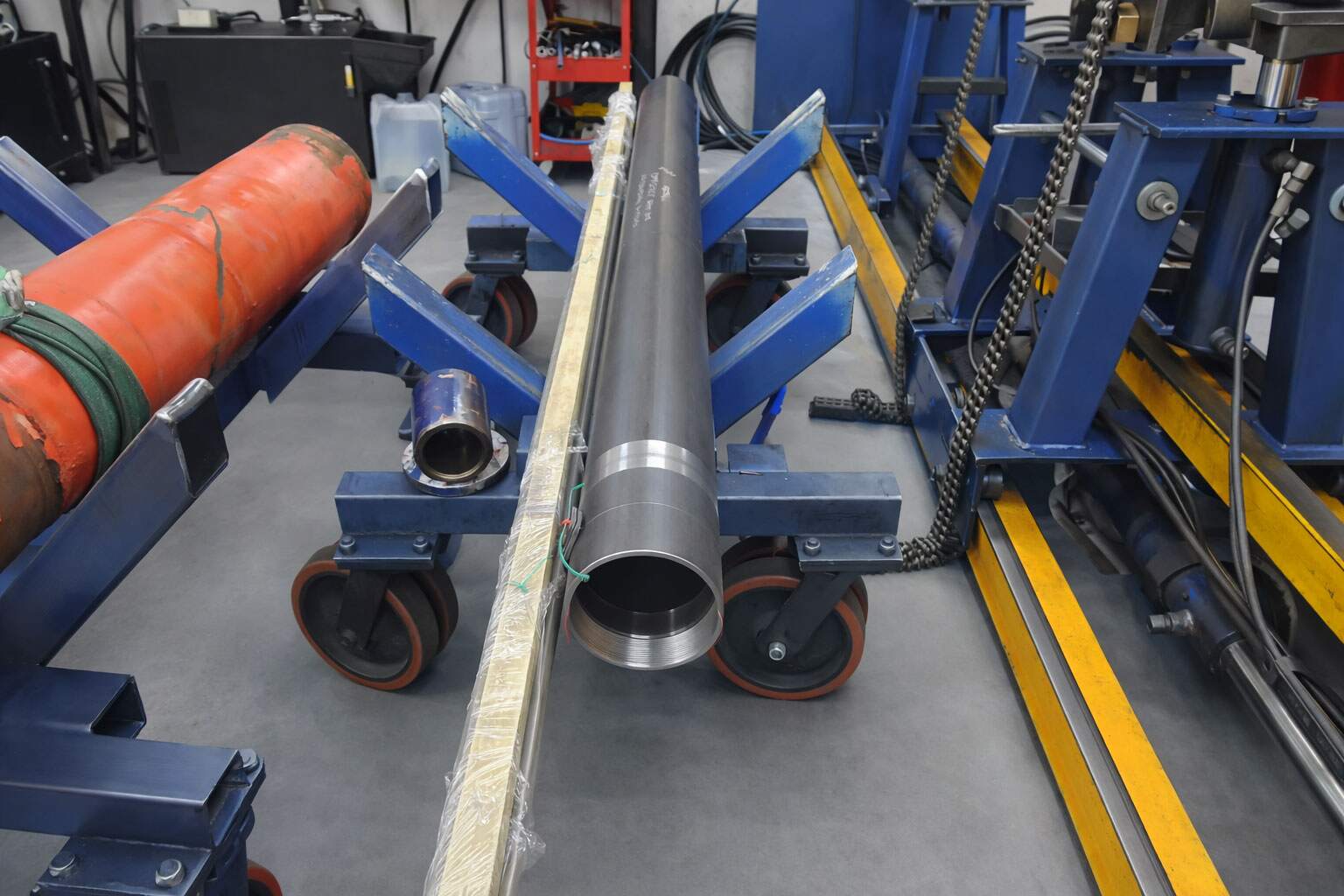

Prepare the Barrel
Cut and machine the cylinder tube and prepare the internal bore to the required dimensional and surface-finish standard.
Machine the Rod
Produce the piston rod to the required diameter, straightness, surface quality and mounting configuration.
Machine Piston & Gland
Produce seal grooves, bearing lands, threads, retaining features and interfaces to the required tolerances.
Deburr & Clean
Remove sharp edges and machining debris before assembly. Cleanliness at this stage is essential for seal protection.
Install Seals & Guidance
Fit rod seals, piston seals, wipers, wear rings and associated components in the correct orientation.
Assemble the Cylinder
Bring the barrel, rod, piston and gland assemblies together using the required locking, torque and retention methods.
Functional & Pressure Checks
Confirm smooth movement, correct stroke, pressure integrity and absence of unacceptable leakage or internal bypass.
Material selection influences strength, sealing and service life
Hydraulic cylinder materials must suit pressure, load, duty cycle, corrosion risk, contamination and the environment in which the cylinder will operate.
Barrel & Bore
- Bore geometry affects piston sealing and guidance.
- Surface finish influences friction, seal bedding and wear.
- Straightness and dimensional consistency affect alignment.
- Material choice must suit pressure and structural loading.
Piston Rod
- Surface quality directly affects rod seal life.
- Straightness is essential for guidance and alignment.
- Coating or plating must suit the operating environment.
- Corrosion and scoring can rapidly damage the sealing system.
Tolerances, alignment and surface quality
Many premature cylinder failures are ultimately linked to geometry, clearances, alignment or surface condition rather than the basic material itself.
Piston guidance, gland guidance, wear rings and seal grooves must work together without excessive friction or uncontrolled movement.
Poor alignment creates side-loading that can damage rods, glands, seals, bearings and barrel surfaces.
Rod and bore surfaces must provide the correct conditions for sealing while avoiding excessive friction and accelerated wear.
Rod seals, piston seals, wipers and guidance
A hydraulic cylinder seal system must contain pressure, control internal leakage, exclude contamination and operate with acceptable friction throughout the cylinder's working life.
Rod-End Sealing
- Wiper: reduces contamination entering around the rod.
- Rod seal: controls hydraulic fluid leakage at the gland.
- Guide or bearing element: supports the rod and helps control side movement.
Piston Sealing
- Piston seal: controls bypass between pressure chambers.
- Wear rings: provide guidance and reduce metal contact.
- Excessive bypass can contribute to drift, reduced force and poor efficiency.
What should be checked before a cylinder enters service?
Final checks confirm that the cylinder has been assembled correctly and can operate through its intended movement without unacceptable leakage, binding or loss of pressure integrity.
Inspect gland areas, ports, closures, joints and other pressure-containing interfaces.
Confirm correct stroke length and smooth movement without sticking, binding or abnormal resistance.
Confirm the cylinder holds the required pressure and does not show unacceptable internal or external leakage.
Common hydraulic cylinder problems and what they can indicate
Visible symptoms often provide useful clues about the condition of the rod, seals, piston, barrel and guidance system.
May be associated with worn seals, rod damage, contamination, alignment problems or seal installation issues.
May indicate internal piston bypass, wear or a wider hydraulic control-system problem.
Often associated with contamination, damaged wiping, poor guidance, misalignment or abrasive working conditions.
Hydraulic cylinder specification checklist
Accurate information at the specification stage reduces ambiguity and helps ensure that the finished cylinder matches the machine, load and operating environment.
Core Dimensions
- Bore diameter
- Piston rod diameter
- Stroke length
- Closed length
- Open length, where relevant
- Mounting type and dimensions
- Port size and position
Performance & Environment
- Working pressure
- Expected load
- Duty cycle
- Hydraulic fluid type
- Operating temperature
- Contamination exposure
- Corrosion or washdown environment
Need a hydraulic cylinder manufactured or refurbished?
Hydraulic Online provides the engineering knowledge. Completely Hydraulic provides practical workshop support for hydraulic cylinder manufacture, repair and refurbishment.
- Bespoke and replacement hydraulic cylinder manufacture
- Hydraulic ram and cylinder refurbishment
- Rod replacement and machining
- Seal replacement and internal component repair
Hydraulic cylinder manufacturing FAQs
How are hydraulic cylinders manufactured?
Hydraulic cylinders are manufactured by machining and finishing the barrel, rod, piston, gland and end components, preparing the internal bore, fitting seals and guidance components, assembling the unit and carrying out final functional and pressure checks.
What is honing in hydraulic cylinder manufacturing?
Honing is a precision finishing process used to improve the cylinder barrel bore geometry and surface condition. The finished bore provides the running surface for the piston sealing system.
What causes a newly rebuilt hydraulic cylinder to fail early?
Early failure can be associated with contamination, damaged surfaces, incorrect clearances, poor alignment, unsuitable seals, installation problems or operating conditions that exceed the cylinder specification.
What causes hydraulic cylinder drift?
Hydraulic cylinder drift may be caused by internal leakage across the piston sealing system, although control valves and other parts of the hydraulic circuit can also allow movement under load.
What information is needed to specify a hydraulic cylinder?
Useful information includes bore diameter, rod diameter, stroke, mounting dimensions, closed and open lengths, working pressure, ports, load, duty cycle, operating temperature and environmental conditions.
